<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='title' content='TextureMapComparisonsCylinder.x3d'/>
<meta name='description' content='Compare ImageTexture mapping for a variety of geometry nodes. This is an excellent test scene for different X3D browsers.'/>
<meta name='creator' content='Sungmin Kwon and Don Brutzman'/>
<meta name='created' content='17 December 2017'/>
<meta name='modified' content='21 January 2020'/>
<meta name='reference' content='TextureMapTesting.pdf'/>

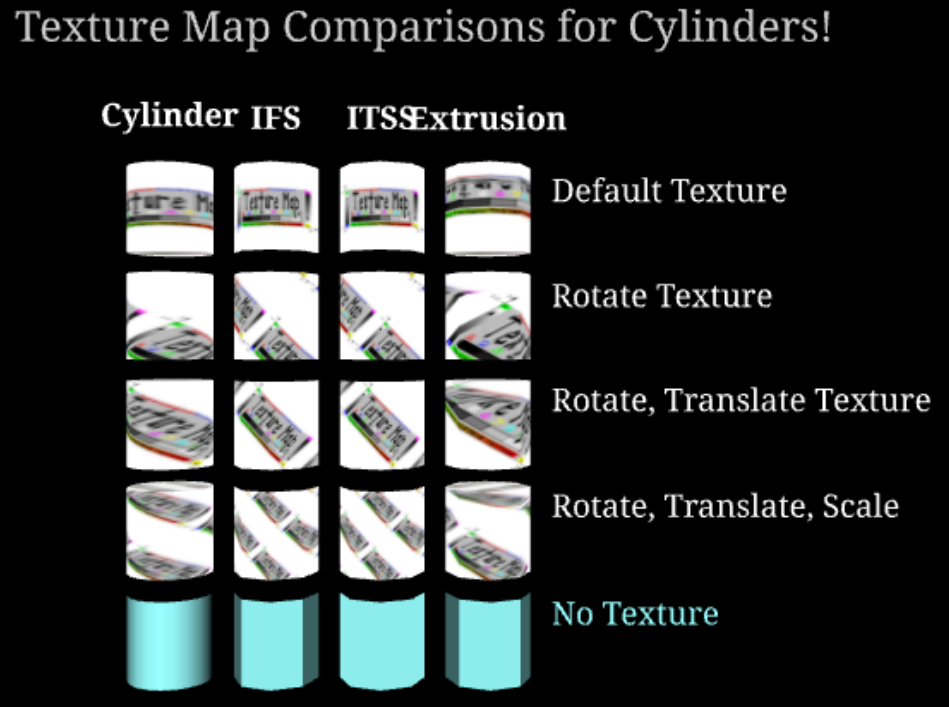

<meta name='Image' content='TextureMapComparisonsCylinderX_ITE.png'/>

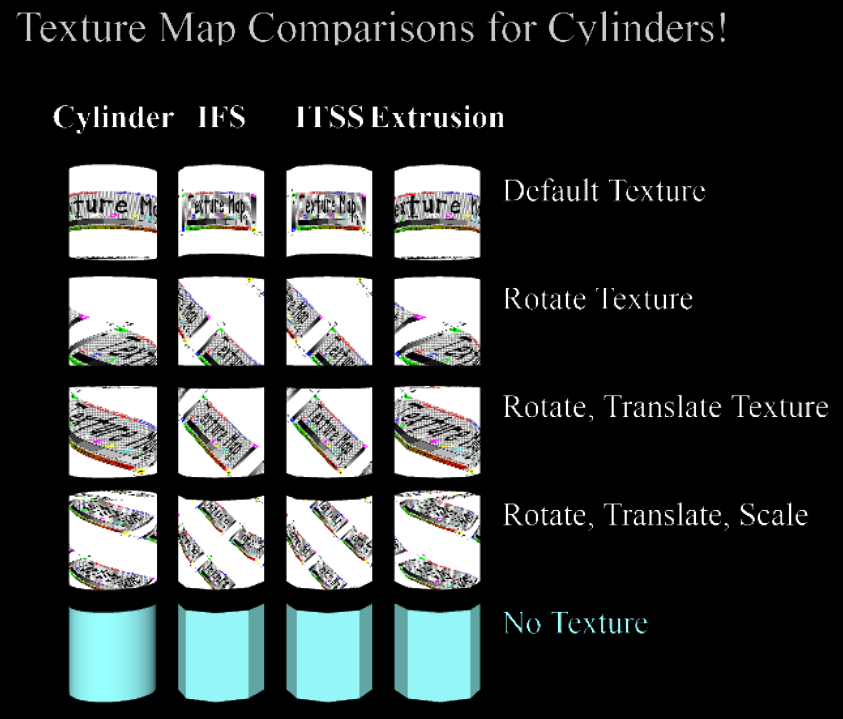

<meta name='Image' content='TextureMapComparisonsCylinderX3DOM.png'/>

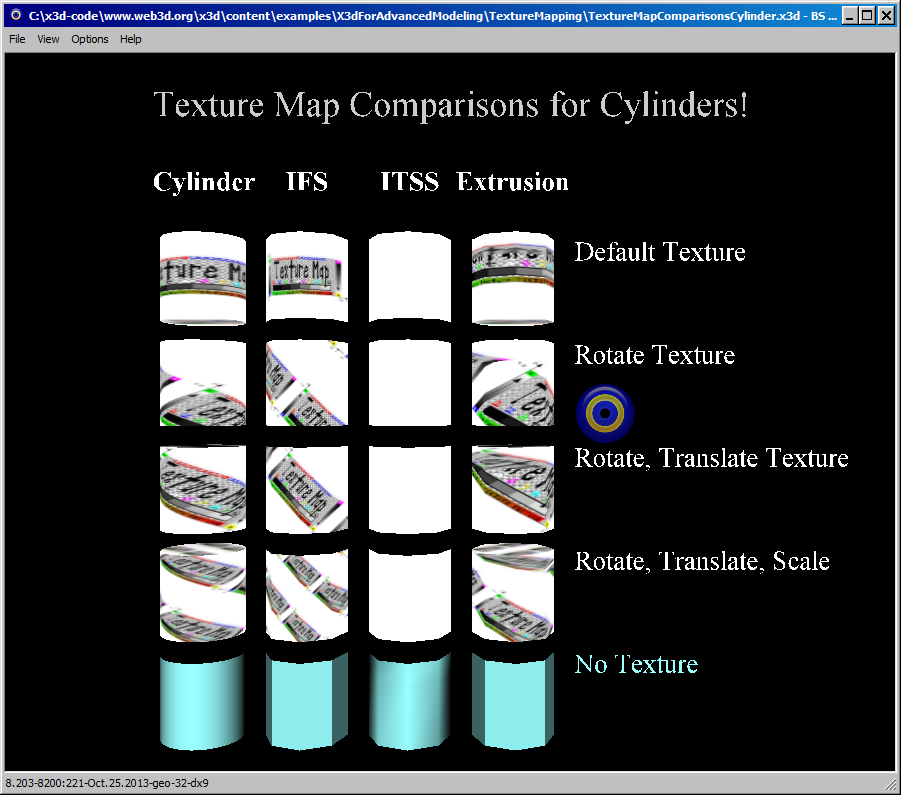

<meta name='Image' content='TextureMapComparisonsCylinderBSContact.png'/>

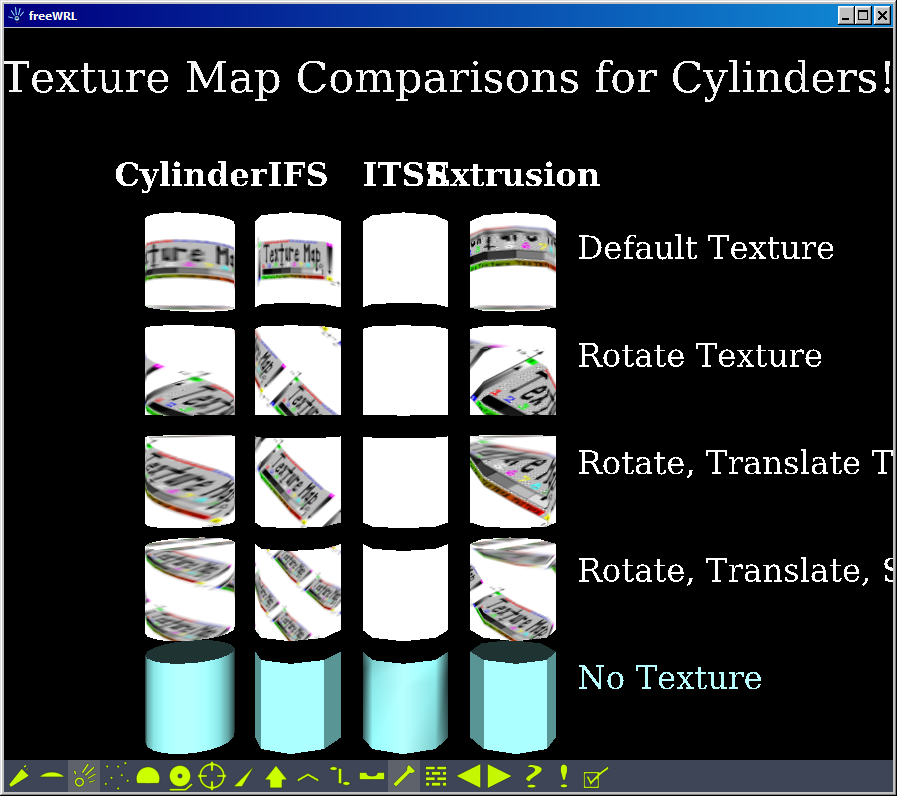

<meta name='Image' content='TextureMapComparisonsCylinderFreeWrl.png'/>

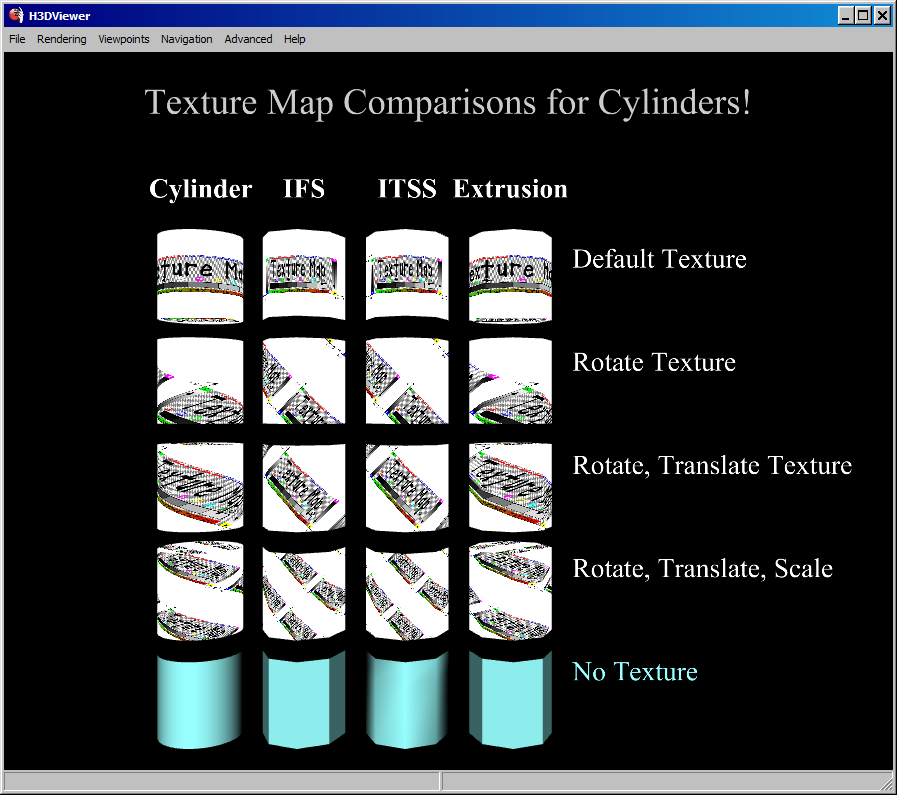

<meta name='Image' content='TextureMapComparisonsCylinderH3DViewer.png'/>

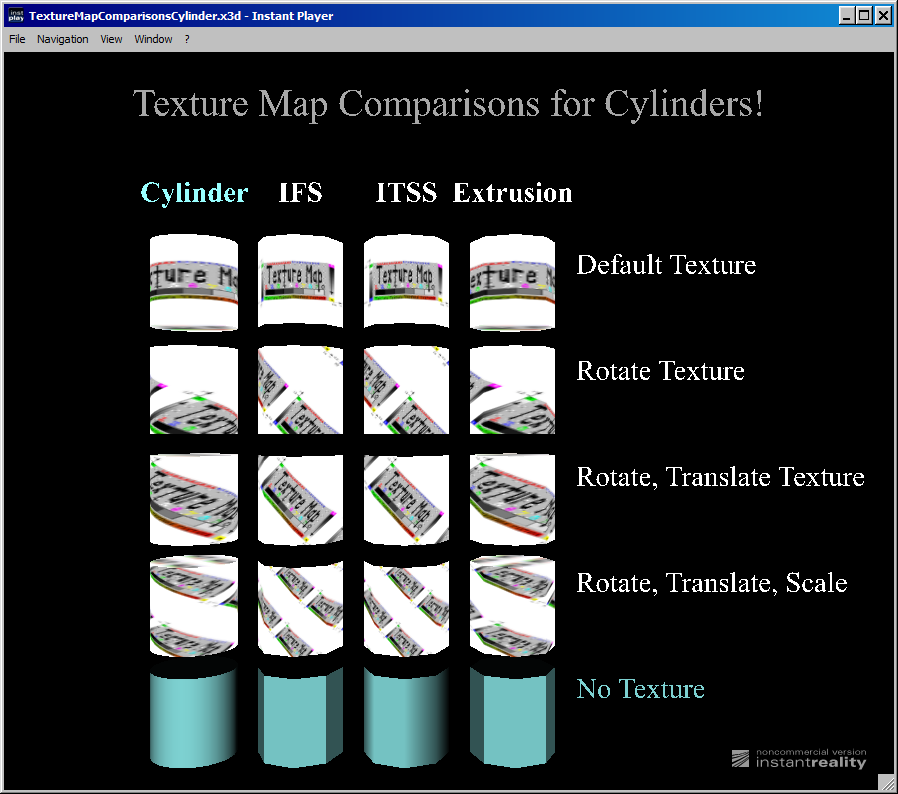

<meta name='Image' content='TextureMapComparisonsCylinderInstantReality.png'/>

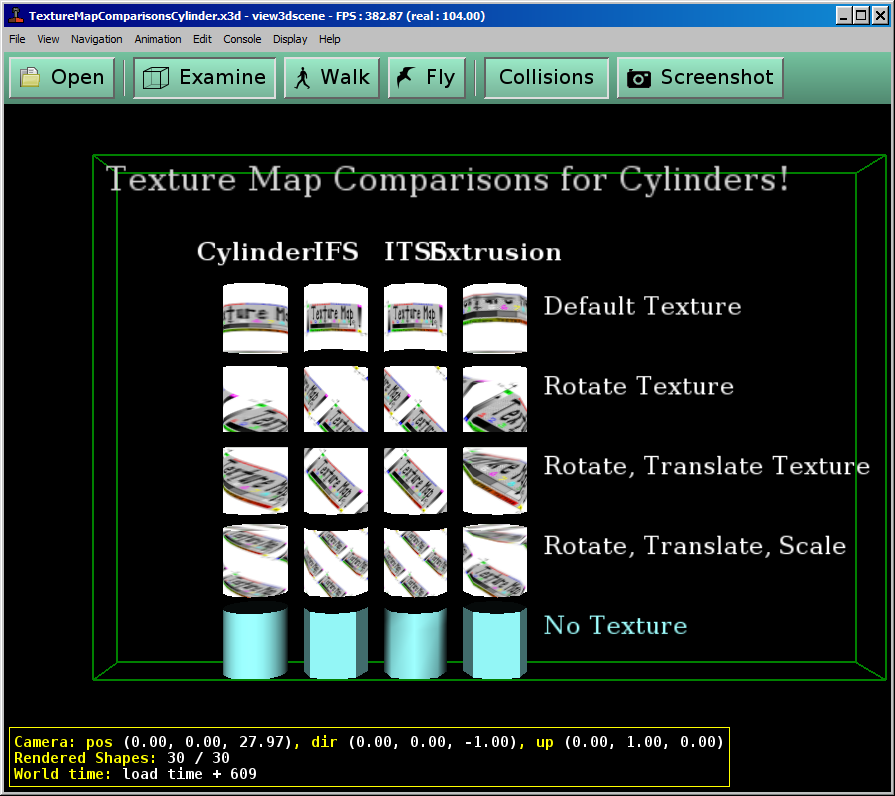

<meta name='Image' content='TextureMapComparisonsCylinderView3dScene.png'/>
<meta name='Image' content='TextureMapComparisonsCylinderXj3D.png'/>
<meta name='reference' content='TextureMapComparisonsRectangle.x3d'/>
<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#Images '/>
<meta name='specificationSection' content='X3D Abstract Specification, 18.2.3 Texture coordinates'/>
<meta name='specificationUrl' content=' https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-IS.proof/Part01/components/texturing.html#Texturecoordinates '/>
<meta name='Image' content=' https://www.web3d.org/documents/specifications/19775-1/V3.3/Images/ImageTexture.gif '/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/TextureMapping/TextureMapComparisonsCylinder.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
Index for DEF nodes : AppearanceNoTexture, BaseExtrusionShape, BaseIFS, BaseITSS, CenterFontStyle, CsForCylinder, DefaultAppearance, DefaultMaterial, LeftFontStyle, SpecificationTexture, TextureAppearance, TextureRotate, TextureScale, TextureTranslate, Title, Viewpoint1
Index for Viewpoint image : Viewpoint1
-->
<Scene>
<WorldInfo title='TextureMapComparisonsCylinder.x3d'/>
<Viewpoint DEF='Viewpoint1' description='default view' position='0 0 21'/>
<!-- == === ==== 1st row -->
<Transform translation='0 0.2 0'>
<!-- Cylinder -->
<Transform translation='0 3 0'>
<Transform translation='-6 0 0'>
<Shape>
<Appearance DEF='TextureAppearance'>
<ImageTexture DEF='SpecificationTexture'
  url=' "ImageTextureSpecificationSquare.png" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/TextureMapping/ImageTextureSpecificationSquare.png" '/>
</Appearance>
<Cylinder/>
</Shape>
</Transform>
<!-- Indexed Face Set -->
<Transform translation='-3.5 0 0'>
<Shape>
<Appearance USE='TextureAppearance'/>
<IndexedFaceSet DEF='BaseIFS' coordIndex='0 1 9 8 -1 1 2 10 9 -1 2 3 11 10 -1 3 4 12 11 -1 4 5 13 12 -1 5 6 14 13 -1 6 7 15 14 -1 7 0 8 15 -1 8 9 17 16 -1 9 10 18 17 -1 10 11 19 18 -1 11 12 20 19 -1 12 13 21 20 -1 13 14 22 21 -1 14 15 23 22 -1 15 8 16 23 -1'>
<Coordinate DEF='CsForCylinder' point='0 -1 1 0.707 -1 0.707 1 -1 0 0.707 -1 -0.707 0 -1 -1 -0.707 -1 -0.707 -1 -1 0 -0.707 -1 0.707 0 0.5 1 0.707 0.5 0.707 1 0.5 0 0.707 0.5 -0.707 0 0.5 -1 -0.707 0.5 -0.707 -1 0.5 0 -0.707 0.5 0.707 0 1 1 0.707 1 0.707 1 1 0 0.707 1 -0.707 0 1 -1 -0.707 1 -0.707 -1 1 0 -0.707 1 0.707'/>
</IndexedFaceSet>
</Shape>
</Transform>
<!-- Indexed Triangle Strip Set -->
<Transform translation='-1 0 0'>
<Shape>
<Appearance USE='TextureAppearance'/>
<IndexedTriangleStripSet DEF='BaseITSS' ccw='true' colorPerVertex='true' index='8 0 9 1 10 2 11 3 12 4 13 5 14 6 15 7 8 0 -1 16 8 17 9 18 10 19 11 20 12 21 13 22 14 23 15 16 8 -1' normalPerVertex='true' solid='true' containerField='geometry'>
<Coordinate USE='CsForCylinder'/>
</IndexedTriangleStripSet>
</Shape>
</Transform>
<!-- Extrusion -->
<Transform translation='1.5 0 0'>
<Shape>
<Appearance USE='TextureAppearance'/>
<Extrusion DEF='BaseExtrusionShape' crossSection='0 -1 -0.707 -0.707 -1 0 -0.707 0.707 0 1 0.707 0.707 1 0 0.707 -0.707 0 -1' spine='0 -1 0 0 0.5 0 0 1 0'>
<!-- spine is open, crossSection is closed -->
</Extrusion>
</Shape>
</Transform>
</Transform>
<!-- == === ==== 2nd row -->
<!-- Cylinder -->
<Transform translation='0 0.5 0'>
<Transform translation='-6 0 0'>
<Shape>
<Appearance DEF='TextureRotate'>
<ImageTexture USE='SpecificationTexture'/>
<TextureTransform rotation='0.8'/>
</Appearance>
<Cylinder/>
</Shape>
</Transform>
<!-- Indexed Face Set -->
<Transform translation='-3.5 0 0'>
<Shape>
<Appearance USE='TextureRotate'/>
<IndexedFaceSet USE='BaseIFS'/>
</Shape>
</Transform>
<!-- Indexed Triangle Strip Set -->
<Transform translation='-1 0 0'>
<Shape>
<Appearance USE='TextureRotate'/>
<IndexedTriangleStripSet USE='BaseITSS' containerField='geometry'/>
</Shape>
</Transform>
<!-- Extrusion -->
<Transform translation='1.5 0 0'>
<Shape>
<Appearance USE='TextureRotate'/>
<Extrusion USE='BaseExtrusionShape'/>
</Shape>
</Transform>
</Transform>
<!-- == === ==== 3rd row -->
<!-- Cylinder -->
<Transform translation='0 -2 0'>
<Transform translation='-6 0 0'>
<Shape>
<Appearance DEF='TextureTranslate'>
<ImageTexture USE='SpecificationTexture'/>
<TextureTransform rotation='0.8' translation='0.2 -0.5'/>
</Appearance>
<Cylinder/>
</Shape>
</Transform>
<!-- Indexed Face Set -->
<Transform translation='-3.5 0 0'>
<Shape>
<Appearance USE='TextureTranslate'/>
<IndexedFaceSet USE='BaseIFS'/>
</Shape>
</Transform>
<!-- Indexed Triangle Strip Set -->
<Transform translation='-1 0 0'>
<Shape>
<Appearance USE='TextureTranslate'/>
<IndexedTriangleStripSet USE='BaseITSS' containerField='geometry'/>
</Shape>
</Transform>
<!-- Extrusion -->
<Transform translation='1.5 0 0'>
<Shape>
<Appearance USE='TextureTranslate'/>
<Extrusion USE='BaseExtrusionShape'/>
</Shape>
</Transform>
</Transform>
<!-- == === ==== 4th row -->
<!-- Cylinder -->
<Transform translation='0 -4.5 0'>
<Transform translation='-6 0 0'>
<Shape>
<Appearance DEF='TextureScale'>
<ImageTexture USE='SpecificationTexture'/>
<TextureTransform rotation='0.8' scale='2 2' translation='0.2 -0.5'/>
</Appearance>
<Cylinder/>
</Shape>
</Transform>
<!-- Indexed Face Set -->
<Transform translation='-3.5 0 0'>
<Shape>
<Appearance USE='TextureScale'/>
<IndexedFaceSet USE='BaseIFS'/>
</Shape>
</Transform>
<!-- Indexed Triangle Strip Set -->
<Transform translation='-1 0 0'>
<Shape>
<Appearance USE='TextureScale'/>
<IndexedTriangleStripSet USE='BaseITSS' containerField='geometry'/>
</Shape>
</Transform>
<!-- Extrusion -->
<Transform translation='1.5 0 0'>
<Shape>
<Appearance USE='TextureScale'/>
<Extrusion USE='BaseExtrusionShape'/>
</Shape>
</Transform>
</Transform>
<!-- == === ==== 5th row -->
<!-- Cylinder -->
<Transform translation='0 -7 0'>
<Transform translation='-6 0 0'>
<Shape>
<Appearance DEF='AppearanceNoTexture'>
<Material diffuseColor='0.6 1 1'/>
</Appearance>
<Cylinder/>
</Shape>
</Transform>
<!-- Indexed Face Set -->
<Transform translation='-3.5 0 0'>
<Shape>
<Appearance USE='AppearanceNoTexture'/>
<IndexedFaceSet coordIndex='0 1 9 8 -1 1 2 10 9 -1 2 3 11 10 -1 3 4 12 11 -1 4 5 13 12 -1 5 6 14 13 -1 6 7 15 14 -1 7 0 8 15 -1 8 9 17 16 -1 9 10 18 17 -1 10 11 19 18 -1 11 12 20 19 -1 12 13 21 20 -1 13 14 22 21 -1 14 15 23 22 -1 15 8 16 23 -1'>
<Coordinate USE='CsForCylinder'/>
</IndexedFaceSet>
</Shape>
</Transform>
<!-- Indexed Triangle Strip Set -->
<Transform translation='-1 0 0'>
<Shape>
<Appearance USE='AppearanceNoTexture'/>
<IndexedTriangleStripSet ccw='true' colorPerVertex='true' index='8 0 9 1 10 2 11 3 12 4 13 5 14 6 15 7 8 0 -1 16 8 17 9 18 10 19 11 20 12 21 13 22 14 23 15 16 8 -1' normalPerVertex='true' solid='true' containerField='geometry'>
<Coordinate USE='CsForCylinder'/>
</IndexedTriangleStripSet>
</Shape>
</Transform>
<!-- Extrusion -->
<Transform translation='1.5 0 0'>
<Shape>
<Appearance USE='AppearanceNoTexture'/>
<Extrusion USE='BaseExtrusionShape'/>
</Shape>
</Transform>
</Transform>
<!-- == === ==== Text -->
<!-- Title -->
<Transform translation='0 7 0'>
<Shape>
<Text DEF='Title' string='"Texture Map Comparisons for Cylinders!"'>
<FontStyle justify='"MIDDLE" "FIRST"'/>
</Text>
<Appearance DEF='DefaultAppearance'>
<Material DEF='DefaultMaterial'/>
</Appearance>
</Shape>
</Transform>
<!-- X axis : Geometry Index -->
<Transform translation='0 5.2 0'>
<!-- Cylinder -->
<Transform translation='-6 0 0'>
<Shape>
<Text string='"Cylinder"'>
<FontStyle DEF='CenterFontStyle' justify='"MIDDLE" "MIDDLE"' size='0.75' style='BOLD'/>
</Text>
</Shape>
</Transform>
<!-- Indexed Face Set -->
<Transform translation='-3.5 0 0'>
<Shape>
<Text string='"IFS"'>
<FontStyle USE='CenterFontStyle'/>
</Text>
</Shape>
</Transform>
<!-- Indexed Triangle Strip Set -->
<Transform translation='-1 0 0'>
<Shape>
<Text string='"ITSS"'>
<FontStyle USE='CenterFontStyle'/>
</Text>
</Shape>
</Transform>
<!-- Extrusion -->
<Transform translation='1.5 0 0'>
<Shape>
<Text string='"Extrusion"'>
<FontStyle USE='CenterFontStyle'/>
</Text>
</Shape>
</Transform>
</Transform>
<!-- Y axis : Texture Description -->
<Transform translation='3 3.5 0'>
<Transform>
<Shape>
<Text string='"Default Texture"'>
<FontStyle DEF='LeftFontStyle' justify='"BEGIN" "MIDDLE"' size='0.75'/>
</Text>
</Shape>
</Transform>
<Transform translation='0 -2.5 0'>
<Shape>
<Text string='"Rotate Texture"'>
<FontStyle USE='LeftFontStyle'/>
</Text>
</Shape>
</Transform>
<Transform translation='0 -5 0'>
<Shape>
<Text string='"Rotate, Translate Texture"'>
<FontStyle USE='LeftFontStyle'/>
</Text>
</Shape>
</Transform>
<Transform translation='0 -7.5 0'>
<Shape>
<Text string='"Rotate, Translate, Scale"'>
<FontStyle USE='LeftFontStyle'/>
</Text>
</Shape>
</Transform>
<Transform translation='0 -10 0'>
<Shape>
<Text string='"No Texture"'>
<FontStyle USE='LeftFontStyle'/>
</Text>
<Appearance>
<Material diffuseColor='0.6 1 1'/>
</Appearance>
</Shape>
</Transform>
</Transform>
</Transform>
</Scene>
</X3D>
<!--
