<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Interactive' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='titlecontent='PointLightExample.x3d'/>
<meta name='descriptioncontent='Two examples of scoped PointLight nodes showing the effects of distance on lit geometry. Faceted IndexedFaceSet is on the left, simple Box on the right.'/>
<meta name='creatorcontent='Leonard Daly and Don Brutzman'/>
<meta name='createdcontent='24 April 2006'/>
<meta name='modifiedcontent='14 June 2020'/>

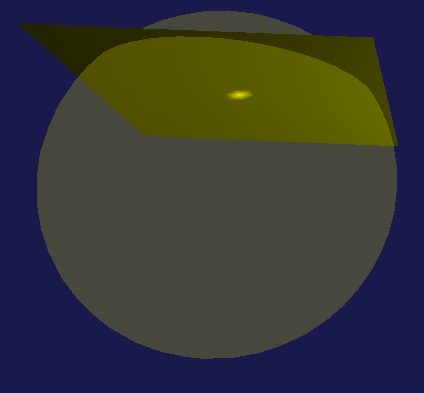

<meta name='Imagecontent='PointLightVisualization.png'/>
<meta name='referencecontent=' https://X3dGraphics.com '/>
<meta name='referencecontent=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rightscontent='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subjectcontent=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifiercontent=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter11LightingEnvironmentalEffects/PointLight.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

Index for DEF nodes : FacetedBox, Lamp1, Lamp2, OffWhite, SimpleBox

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3
-->
<Scene>
<WorldInfo title='PointLight.x3d'/>
<Background skyColor='0.1 0.1 0.1'/>
<NavigationInfo headlight='false'/>
<Viewpoint description='Common viewpointposition='0 0 40'/>
<Transform translation='-15 0 0'>
<Viewpoint description='Faceted box, smooth shadingposition='0 0 25'/>
<PointLight DEF='Lamp1color='1 1 0location='0 0 6radius='15'/>
<Transform DEF='FacetedBox'>
<Shape>
<Appearance>
<Material DEF='OffWhitediffuseColor='.95 .95 .95'/>
</Appearance>
<IndexedFaceSet solid='falsecoordIndex='0 1 22 21 -1 1 2 23 22 -1 2 3 24 23 -1 3 4 25 24 -1 4 5 26 25 -1 5 6 27 26 -1 6 7 28 27 -1 7 8 29 28 -1 8 9 30 29 -1 9 10 31 30 -1 10 11 32 31 -1 11 12 33 32 -1 12 13 34 33 -1 13 14 35 34 -1 14 15 36 35 -1 15 16 37 36 -1 16 17 38 37 -1 17 18 39 38 -1 18 19 40 39 -1 19 20 41 40 -1 21 22 43 42 -1 22 23 44 43 -1 23 24 45 44 -1 24 25 46 45 -1 25 26 47 46 -1 26 27 48 47 -1 27 28 49 48 -1 28 29 50 49 -1 29 30 51 50 -1 30 31 52 51 -1 31 32 53 52 -1 32 33 54 53 -1 33 34 55 54 -1 34 35 56 55 -1 35 36 57 56 -1 36 37 58 57 -1 37 38 59 58 -1 38 39 60 59 -1 39 40 61 60 -1 40 41 62 61 -1 42 43 64 63 -1 43 44 65 64 -1 44 45 66 65 -1 45 46 67 66 -1 46 47 68 67 -1 47 48 69 68 -1 48 49 70 69 -1 49 50 71 70 -1 50 51 72 71 -1 51 52 73 72 -1 52 53 74 73 -1 53 54 75 74 -1 54 55 76 75 -1 55 56 77 76 -1 56 57 78 77 -1 57 58 79 78 -1 58 59 80 79 -1 59 60 81 80 -1 60 61 82 81 -1 61 62 83 82 -1 63 64 85 84 -1 64 65 86 85 -1 65 66 87 86 -1 66 67 88 87 -1 67 68 89 88 -1 68 69 90 89 -1 69 70 91 90 -1 70 71 92 91 -1 71 72 93 92 -1 72 73 94 93 -1 73 74 95 94 -1 74 75 96 95 -1 75 76 97 96 -1 76 77 98 97 -1 77 78 99 98 -1 78 79 100 99 -1 79 80 101 100 -1 80 81 102 101 -1 81 82 103 102 -1 82 83 104 103 -1 84 85 106 105 -1 85 86 107 106 -1 86 87 108 107 -1 87 88 109 108 -1 88 89 110 109 -1 89 90 111 110 -1 90 91 112 111 -1 91 92 113 112 -1 92 93 114 113 -1 93 94 115 114 -1 94 95 116 115 -1 95 96 117 116 -1 96 97 118 117 -1 97 98 119 118 -1 98 99 120 119 -1 99 100 121 120 -1 100 101 122 121 -1 101 102 123 122 -1 102 103 124 123 -1 103 104 125 124 -1 105 106 127 126 -1 106 107 128 127 -1 107 108 129 128 -1 108 109 130 129 -1 109 110 131 130 -1 110 111 132 131 -1 111 112 133 132 -1 112 113 134 133 -1 113 114 135 134 -1 114 115 136 135 -1 115 116 137 136 -1 116 117 138 137 -1 117 118 139 138 -1 118 119 140 139 -1 119 120 141 140 -1 120 121 142 141 -1 121 122 143 142 -1 122 123 144 143 -1 123 124 145 144 -1 124 125 146 145 -1 126 127 148 147 -1 127 128 149 148 -1 128 129 150 149 -1 129 130 151 150 -1 130 131 152 151 -1 131 132 153 152 -1 132 133 154 153 -1 133 134 155 154 -1 134 135 156 155 -1 135 136 157 156 -1 136 137 158 157 -1 137 138 159 158 -1 138 139 160 159 -1 139 140 161 160 -1 140 141 162 161 -1 141 142 163 162 -1 142 143 164 163 -1 143 144 165 164 -1 144 145 166 165 -1 145 146 167 166 -1 147 148 169 168 -1 148 149 170 169 -1 149 150 171 170 -1 150 151 172 171 -1 151 152 173 172 -1 152 153 174 173 -1 153 154 175 174 -1 154 155 176 175 -1 155 156 177 176 -1 156 157 178 177 -1 157 158 179 178 -1 158 159 180 179 -1 159 160 181 180 -1 160 161 182 181 -1 161 162 183 182 -1 162 163 184 183 -1 163 164 185 184 -1 164 165 186 185 -1 165 166 187 186 -1 166 167 188 187 -1 168 169 190 189 -1 169 170 191 190 -1 170 171 192 191 -1 171 172 193 192 -1 172 173 194 193 -1 173 174 195 194 -1 174 175 196 195 -1 175 176 197 196 -1 176 177 198 197 -1 177 178 199 198 -1 178 179 200 199 -1 179 180 201 200 -1 180 181 202 201 -1 181 182 203 202 -1 182 183 204 203 -1 183 184 205 204 -1 184 185 206 205 -1 185 186 207 206 -1 186 187 208 207 -1 187 188 209 208 -1 189 190 211 210 -1 190 191 212 211 -1 191 192 213 212 -1 192 193 214 213 -1 193 194 215 214 -1 194 195 216 215 -1 195 196 217 216 -1 196 197 218 217 -1 197 198 219 218 -1 198 199 220 219 -1 199 200 221 220 -1 200 201 222 221 -1 201 202 223 222 -1 202 203 224 223 -1 203 204 225 224 -1 204 205 226 225 -1 205 206 227 226 -1 206 207 228 227 -1 207 208 229 228 -1 208 209 230 229 -1 210 211 232 231 -1 211 212 233 232 -1 212 213 234 233 -1 213 214 235 234 -1 214 215 236 235 -1 215 216 237 236 -1 216 217 238 237 -1 217 218 239 238 -1 218 219 240 239 -1 219 220 241 240 -1 220 221 242 241 -1 221 222 243 242 -1 222 223 244 243 -1 223 224 245 244 -1 224 225 246 245 -1 225 226 247 246 -1 226 227 248 247 -1 227 228 249 248 -1 228 229 250 249 -1 229 230 251 250 -1 231 232 253 252 -1 232 233 254 253 -1 233 234 255 254 -1 234 235 256 255 -1 235 236 257 256 -1 236 237 258 257 -1 237 238 259 258 -1 238 239 260 259 -1 239 240 261 260 -1 240 241 262 261 -1 241 242 263 262 -1 242 243 264 263 -1 243 244 265 264 -1 244 245 266 265 -1 245 246 267 266 -1 246 247 268 267 -1 247 248 269 268 -1 248 249 270 269 -1 249 250 271 270 -1 250 251 272 271 -1 252 253 274 273 -1 253 254 275 274 -1 254 255 276 275 -1 255 256 277 276 -1 256 257 278 277 -1 257 258 279 278 -1 258 259 280 279 -1 259 260 281 280 -1 260 261 282 281 -1 261 262 283 282 -1 262 263 284 283 -1 263 264 285 284 -1 264 265 286 285 -1 265 266 287 286 -1 266 267 288 287 -1 267 268 289 288 -1 268 269 290 289 -1 269 270 291 290 -1 270 271 292 291 -1 271 272 293 292 -1 273 274 295 294 -1 274 275 296 295 -1 275 276 297 296 -1 276 277 298 297 -1 277 278 299 298 -1 278 279 300 299 -1 279 280 301 300 -1 280 281 302 301 -1 281 282 303 302 -1 282 283 304 303 -1 283 284 305 304 -1 284 285 306 305 -1 285 286 307 306 -1 286 287 308 307 -1 287 288 309 308 -1 288 289 310 309 -1 289 290 311 310 -1 290 291 312 311 -1 291 292 313 312 -1 292 293 314 313 -1 294 295 316 315 -1 295 296 317 316 -1 296 297 318 317 -1 297 298 319 318 -1 298 299 320 319 -1 299 300 321 320 -1 300 301 322 321 -1 301 302 323 322 -1 302 303 324 323 -1 303 304 325 324 -1 304 305 326 325 -1 305 306 327 326 -1 306 307 328 327 -1 307 308 329 328 -1 308 309 330 329 -1 309 310 331 330 -1 310 311 332 331 -1 311 312 333 332 -1 312 313 334 333 -1 313 314 335 334 -1 315 316 337 336 -1 316 317 338 337 -1 317 318 339 338 -1 318 319 340 339 -1 319 320 341 340 -1 320 321 342 341 -1 321 322 343 342 -1 322 323 344 343 -1 323 324 345 344 -1 324 325 346 345 -1 325 326 347 346 -1 326 327 348 347 -1 327 328 349 348 -1 328 329 350 349 -1 329 330 351 350 -1 330 331 352 351 -1 331 332 353 352 -1 332 333 354 353 -1 333 334 355 354 -1 334 335 356 355 -1 336 337 358 357 -1 337 338 359 358 -1 338 339 360 359 -1 339 340 361 360 -1 340 341 362 361 -1 341 342 363 362 -1 342 343 364 363 -1 343 344 365 364 -1 344 345 366 365 -1 345 346 367 366 -1 346 347 368 367 -1 347 348 369 368 -1 348 349 370 369 -1 349 350 371 370 -1 350 351 372 371 -1 351 352 373 372 -1 352 353 374 373 -1 353 354 375 374 -1 354 355 376 375 -1 355 356 377 376 -1 357 358 379 378 -1 358 359 380 379 -1 359 360 381 380 -1 360 361 382 381 -1 361 362 383 382 -1 362 363 384 383 -1 363 364 385 384 -1 364 365 386 385 -1 365 366 387 386 -1 366 367 388 387 -1 367 368 389 388 -1 368 369 390 389 -1 369 370 391 390 -1 370 371 392 391 -1 371 372 393 392 -1 372 373 394 393 -1 373 374 395 394 -1 374 375 396 395 -1 375 376 397 396 -1 376 377 398 397 -1 378 379 400 399 -1 379 380 401 400 -1 380 381 402 401 -1 381 382 403 402 -1 382 383 404 403 -1 383 384 405 404 -1 384 385 406 405 -1 385 386 407 406 -1 386 387 408 407 -1 387 388 409 408 -1 388 389 410 409 -1 389 390 411 410 -1 390 391 412 411 -1 391 392 413 412 -1 392 393 414 413 -1 393 394 415 414 -1 394 395 416 415 -1 395 396 417 416 -1 396 397 418 417 -1 397 398 419 418 -1 399 400 421 420 -1 400 401 422 421 -1 401 402 423 422 -1 402 403 424 423 -1 403 404 425 424 -1 404 405 426 425 -1 405 406 427 426 -1 406 407 428 427 -1 407 408 429 428 -1 408 409 430 429 -1 409 410 431 430 -1 410 411 432 431 -1 411 412 433 432 -1 412 413 434 433 -1 413 414 435 434 -1 414 415 436 435 -1 415 416 437 436 -1 416 417 438 437 -1 417 418 439 438 -1 418 419 440 439 -1'>
<Coordinate point='10 10 0 9 10 0 8 10 0 7 10 0 6 10 0 5 10 0 4 10 0 3 10 0 2 10 0 1 10 0 0 10 0 -1 10 0 -2 10 0 -3 10 0 -4 10 0 -5 10 0 -6 10 0 -7 10 0 -8 10 0 -9 10 0 -10 10 0 10 9 0 9 9 0 8 9 0 7 9 0 6 9 0 5 9 0 4 9 0 3 9 0 2 9 0 1 9 0 0 9 0 -1 9 0 -2 9 0 -3 9 0 -4 9 0 -5 9 0 -6 9 0 -7 9 0 -8 9 0 -9 9 0 -10 9 0 10 8 0 9 8 0 8 8 0 7 8 0 6 8 0 5 8 0 4 8 0 3 8 0 2 8 0 1 8 0 0 8 0 -1 8 0 -2 8 0 -3 8 0 -4 8 0 -5 8 0 -6 8 0 -7 8 0 -8 8 0 -9 8 0 -10 8 0 10 7 0 9 7 0 8 7 0 7 7 0 6 7 0 5 7 0 4 7 0 3 7 0 2 7 0 1 7 0 0 7 0 -1 7 0 -2 7 0 -3 7 0 -4 7 0 -5 7 0 -6 7 0 -7 7 0 -8 7 0 -9 7 0 -10 7 0 10 6 0 9 6 0 8 6 0 7 6 0 6 6 0 5 6 0 4 6 0 3 6 0 2 6 0 1 6 0 0 6 0 -1 6 0 -2 6 0 -3 6 0 -4 6 0 -5 6 0 -6 6 0 -7 6 0 -8 6 0 -9 6 0 -10 6 0 10 5 0 9 5 0 8 5 0 7 5 0 6 5 0 5 5 0 4 5 0 3 5 0 2 5 0 1 5 0 0 5 0 -1 5 0 -2 5 0 -3 5 0 -4 5 0 -5 5 0 -6 5 0 -7 5 0 -8 5 0 -9 5 0 -10 5 0 10 4 0 9 4 0 8 4 0 7 4 0 6 4 0 5 4 0 4 4 0 3 4 0 2 4 0 1 4 0 0 4 0 -1 4 0 -2 4 0 -3 4 0 -4 4 0 -5 4 0 -6 4 0 -7 4 0 -8 4 0 -9 4 0 -10 4 0 10 3 0 9 3 0 8 3 0 7 3 0 6 3 0 5 3 0 4 3 0 3 3 0 2 3 0 1 3 0 0 3 0 -1 3 0 -2 3 0 -3 3 0 -4 3 0 -5 3 0 -6 3 0 -7 3 0 -8 3 0 -9 3 0 -10 3 0 10 2 0 9 2 0 8 2 0 7 2 0 6 2 0 5 2 0 4 2 0 3 2 0 2 2 0 1 2 0 0 2 0 -1 2 0 -2 2 0 -3 2 0 -4 2 0 -5 2 0 -6 2 0 -7 2 0 -8 2 0 -9 2 0 -10 2 0 10 1 0 9 1 0 8 1 0 7 1 0 6 1 0 5 1 0 4 1 0 3 1 0 2 1 0 1 1 0 0 1 0 -1 1 0 -2 1 0 -3 1 0 -4 1 0 -5 1 0 -6 1 0 -7 1 0 -8 1 0 -9 1 0 -10 1 0 10 0 0 9 0 0 8 0 0 7 0 0 6 0 0 5 0 0 4 0 0 3 0 0 2 0 0 1 0 0 0 0 0 -1 0 0 -2 0 0 -3 0 0 -4 0 0 -5 0 0 -6 0 0 -7 0 0 -8 0 0 -9 0 0 -10 0 0 10 -1 0 9 -1 0 8 -1 0 7 -1 0 6 -1 0 5 -1 0 4 -1 0 3 -1 0 2 -1 0 1 -1 0 0 -1 0 -1 -1 0 -2 -1 0 -3 -1 0 -4 -1 0 -5 -1 0 -6 -1 0 -7 -1 0 -8 -1 0 -9 -1 0 -10 -1 0 10 -2 0 9 -2 0 8 -2 0 7 -2 0 6 -2 0 5 -2 0 4 -2 0 3 -2 0 2 -2 0 1 -2 0 0 -2 0 -1 -2 0 -2 -2 0 -3 -2 0 -4 -2 0 -5 -2 0 -6 -2 0 -7 -2 0 -8 -2 0 -9 -2 0 -10 -2 0 10 -3 0 9 -3 0 8 -3 0 7 -3 0 6 -3 0 5 -3 0 4 -3 0 3 -3 0 2 -3 0 1 -3 0 0 -3 0 -1 -3 0 -2 -3 0 -3 -3 0 -4 -3 0 -5 -3 0 -6 -3 0 -7 -3 0 -8 -3 0 -9 -3 0 -10 -3 0 10 -4 0 9 -4 0 8 -4 0 7 -4 0 6 -4 0 5 -4 0 4 -4 0 3 -4 0 2 -4 0 1 -4 0 0 -4 0 -1 -4 0 -2 -4 0 -3 -4 0 -4 -4 0 -5 -4 0 -6 -4 0 -7 -4 0 -8 -4 0 -9 -4 0 -10 -4 0 10 -5 0 9 -5 0 8 -5 0 7 -5 0 6 -5 0 5 -5 0 4 -5 0 3 -5 0 2 -5 0 1 -5 0 0 -5 0 -1 -5 0 -2 -5 0 -3 -5 0 -4 -5 0 -5 -5 0 -6 -5 0 -7 -5 0 -8 -5 0 -9 -5 0 -10 -5 0 10 -6 0 9 -6 0 8 -6 0 7 -6 0 6 -6 0 5 -6 0 4 -6 0 3 -6 0 2 -6 0 1 -6 0 0 -6 0 -1 -6 0 -2 -6 0 -3 -6 0 -4 -6 0 -5 -6 0 -6 -6 0 -7 -6 0 -8 -6 0 -9 -6 0 -10 -6 0 10 -7 0 9 -7 0 8 -7 0 7 -7 0 6 -7 0 5 -7 0 4 -7 0 3 -7 0 2 -7 0 1 -7 0 0 -7 0 -1 -7 0 -2 -7 0 -3 -7 0 -4 -7 0 -5 -7 0 -6 -7 0 -7 -7 0 -8 -7 0 -9 -7 0 -10 -7 0 10 -8 0 9 -8 0 8 -8 0 7 -8 0 6 -8 0 5 -8 0 4 -8 0 3 -8 0 2 -8 0 1 -8 0 0 -8 0 -1 -8 0 -2 -8 0 -3 -8 0 -4 -8 0 -5 -8 0 -6 -8 0 -7 -8 0 -8 -8 0 -9 -8 0 -10 -8 0 10 -9 0 9 -9 0 8 -9 0 7 -9 0 6 -9 0 5 -9 0 4 -9 0 3 -9 0 2 -9 0 1 -9 0 0 -9 0 -1 -9 0 -2 -9 0 -3 -9 0 -4 -9 0 -5 -9 0 -6 -9 0 -7 -9 0 -8 -9 0 -9 -9 0 -10 -9 0 10 -10 0 9 -10 0 8 -10 0 7 -10 0 6 -10 0 5 -10 0 4 -10 0 3 -10 0 2 -10 0 1 -10 0 0 -10 0 -1 -10 0 -2 -10 0 -3 -10 0 -4 -10 0 -5 -10 0 -6 -10 0 -7 -10 0 -8 -10 0 -9 -10 0 -10 -10 0'/>
</IndexedFaceSet>
</Shape>
</Transform>
</Transform>
<Transform translation='15 0 0'>
<Viewpoint description='Simple box, constant shadingposition='0 0 25'/>
<PointLight DEF='Lamp2color='1 1 0location='0 0 6radius='15'/>
<Transform DEF='SimpleBox'>
<Shape>
<Appearance>
<Material USE='OffWhite'/>
</Appearance>
<Box size='20 20 0.1'/>
</Shape>
</Transform>
</Transform>
</Scene>
</X3D>
<!--

Index for DEF nodes : FacetedBox, Lamp1, Lamp2, OffWhite, SimpleBox

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3
-->

<!-- Color key: <X3dNode DEF='idName' field='value'/> matches <XmlElement DEF='idName' attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources and X3D Scene Authoring Hints. -->
