Appearance is associated with specific geometry within a shared Shape node. Appearance for shapes is defined by Material, TwoSidedMaterial, ImageTexture, MovieTexture, PixelTexture and MultiTexture nodes. Appearance and texture properties are controlled by FillProperties, LineProperties, TextureProperties, and TextureTransform/MultiTextureTransform nodes. The supporting Chapter 5 slideset and course videos are available online via X3dGraphics.com. |
| X3D Scenes | Descriptions |
|---|---|
| Ambient Intensity | This example illustrates the effect of an ambientIntensity field from a Sphere on a Cone. |
| Circle Fish Prototype | This is a prototype for a CircleFish, which is also used by CircleFishLod. Default fish size: length is 1 m (Y-axis), max Height is 1 m (Z-axis), max Width is 10 cm (X-axis). |
| Circle Fish PTPrototype | This is a prototype for a CircleFish, which is also used by CircleFishLod. Default fish size: length is 1 m (Y-axis), max Height is 1 m (Z-axis), max Width is 10 cm (X-axis). |
| Diffuse Color | A Sphere colored only with an diffuseColor. |
| Emissive Color | A Sphere colored only with an emmissiveColor. |
| Fill Properties | Demonstrate various FillProperties values. |
| Garibaldi | Instantiate the standard Garibaldi fish prototype. |
| Garibaldi Local Texture | Instantiate the Garibaldi fish prototype using a local skin texture file. |
| Garibaldi Remote | Instancing a prototype to match a specific fish. |
| Garibaldi Remote No Texture | Instantiate the Garibaldi fish prototype using a remote skin texture file. |

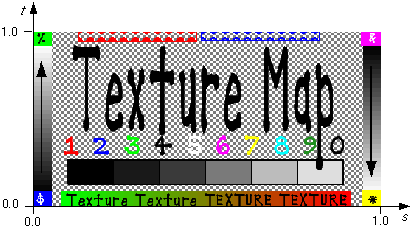

| Geometry Primitive Nodes Image Texture | Geometry Primitive Nodes: Shape, Box, Cone, Cylinder, Sphere, Text, FontStyle, with ImageTexture applied |
| Line Properties | Demonstrate various LineProperties values. |

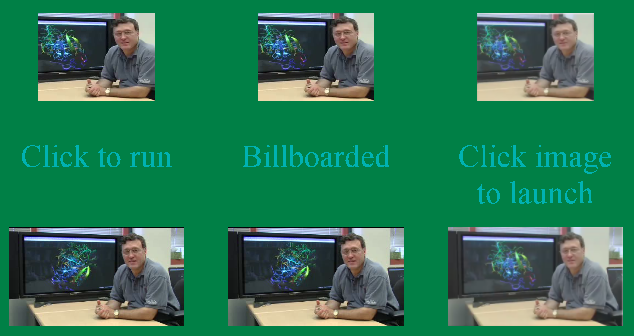

| Movie Texture Authoring Options | Provide examples of helpful MovieTexture usage |
| Pixel Texture | This example shows a colorful PixelTexture applied to the standard primitive shapes. |
| Pixel Texture BW | Illustration of a checkerboard pattern using the PixelTexture node. |
| Pixel Texture Component Examples | This example shows the five PixelTexture components, with 0 to 4 components each, shown in Table 5-18. |
| Pixel Texture Garibaldi | The Garibaldi with a PixelTexture instead of a file texture. |

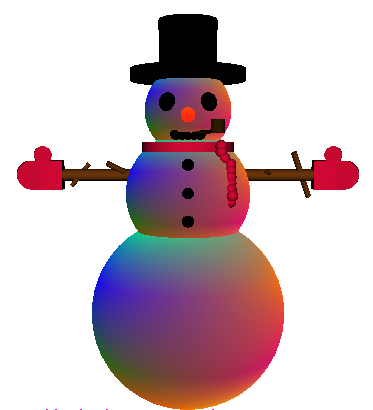

| Pixel Texture Snowman | This snowman example shows a colorful PixelTexture applied to X3D primitive shapes - happy holidays! |
| Pixel Texture Transform Scale | This example illustrates a PixelTexture with a scaled TextureTransform. |
| Specular Color | A Sphere with specularColor applied over diffuseColor with default shininess. |
| Table 5 18 - Pixel Texture | PixelTexture example for Table 5.18 |
| Texture Local Garibaldi | Instantiate the Garibaldi fish prototype using a local texture file. |
| Texture Remote Garibaldi | Instantiate the Garibaldi fish prototype without a skin texture. |
| Texture Transform | An illustration of the same PixelTexture applied to a cone with different TextureTransform values |
| Texture Transform Full | Two Boxes with the same PixelTexture showing different TextureTransform field values. |
| Texture Transform Scale | This is an example of 2 Boxes with the same PixelTexture with different rotations, centers, and scaling. |
| Texture Transform Translation | 3 Boxes with the same PixelTexture and different TextureTransform translation values. |
| Transparency | This example shows a partially transparent Sphere in front of an opaque Box and Cylinder. |
| Two Sided Material | A Sphere colored red on outside and orange on inside using TwoSidedMaterial |
http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter05-AppearanceMaterialTextures
|
|
|
|
|
|
Current and archived nightly builds and distributions of these examples are also available.
The X3D Resources: Examples page and Savage Developers Guide provide more information about the production of this archive.
